Apache Kafka Explained: Powering Netflix, Building with PHP

What is Apache Kafka?

Apache Kafka is a distributed streaming platform designed for building real-time data pipelines and streaming applications. It's a publish-subscribe messaging system that enables applications to publish and subscribe to streams of records, store them durably, and process them in real-time.

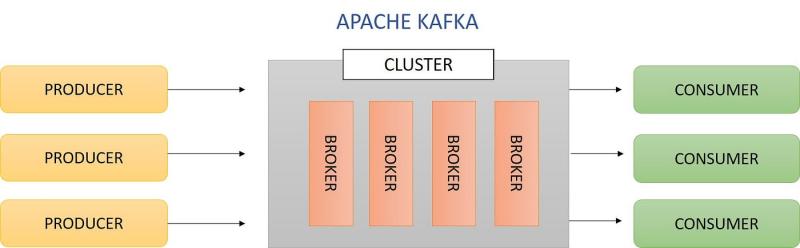

Key concepts of Kafka include:

• Producers: Applications that publish records to Kafka topics.
• Consumers: Applications that subscribe to topics and process the records published to them.
• Brokers: Kafka servers that store the published records. A Kafka cluster consists of multiple brokers for fault tolerance and scalability.
• Topics: Categories or feed names to which records are published. Topics are logically divided into ordered, immutable sequences of records called partitions.
• Records (Messages): The basic unit of data in Kafka, consisting of a key, a value, and a timestamp.

Kafka's core strengths lie in its ability to handle high-throughput, low-latency data streams, its durability, and its fault-tolerant, scalable architecture. It's widely used for:

• Real-time data pipelines and integration.
• Streaming analytics.
• Log aggregation.
• Event sourcing.
• Microservices communication.

Why Netflix uses Kafka?

Netflix leverages Apache Kafka extensively as a central nervous system for its data infrastructure due to its immense scale and real-time data processing needs. Kafka enables Netflix to handle petabytes of data and trillions of events per day.

Key reasons and use cases for Kafka at Netflix include:

• Real-time Activity Tracking: Kafka captures and processes billions of user interactions, viewing activities, device events, and performance metrics. This data is crucial for understanding user behavior, optimizing content delivery, and powering recommendations.
• Operational Monitoring and Alerting: Logs and operational metrics from thousands of servers and microservices are streamed into Kafka. This allows for real-time monitoring, anomaly detection, and immediate alerting on system health and performance issues.
• Personalization and Recommendation Systems: User activity data (e.g., what users watch, search for, rate) is fed into Kafka, enabling real-time updates to recommendation algorithms and personalized content delivery.
• Data Synchronization: Kafka acts as a message bus for internal services to communicate asynchronously, decoupling them and ensuring data consistency across various systems. This is vital for their microservices architecture.
• Security and Fraud Detection: Event streams related to authentication, access patterns, and financial transactions are monitored via Kafka to detect and prevent security breaches and fraudulent activities in real-time.
• ETL (Extract, Transform, Load) Pipelines: Kafka serves as the backbone for various ETL pipelines, moving data from operational databases into data warehouses and analytics platforms for further processing and long-term storage.

The benefits Netflix gains from Kafka include:

• Scalability: Handling massive volumes of data and a global user base.
• Durability and Fault Tolerance: Ensuring data is not lost even in the event of failures, critical for business operations and user experience.
• High Throughput and Low Latency: Processing data streams with minimal delay, enabling real-time reactions.
• Decoupling: Allowing different services to communicate without direct dependencies, enhancing architectural flexibility and resilience.

How do I use Kafka in PHP?

PHP does not have a native Kafka client built into its core. To interact with Apache Kafka from PHP, you typically use a PHP extension that wraps librdkafka, which is a C library for Apache Kafka. The most popular and robust extension for this purpose is php-rdkafka.

To use Kafka in PHP:

1. Install librdkafka: First, you need to install the librdkafka C library on your system. The installation method varies by operating system (e.g., brew install librdkafka on macOS, sudo apt-get install librdkafka-dev on Debian/Ubuntu).

2. Install php-rdkafka Extension:

• Once librdkafka is installed, you can install the php-rdkafka PHP extension.
• This is usually done via pecl: pecl install rdkafka.
• After installation, you need to enable the extension in your php.ini file by adding extension=rdkafka.so.
• Verify the installation by running php -m | grep rdkafka.

3. Basic Concepts in PHP:

• RdKafka\Conf: Used to configure general client settings (e.g., broker list, consumer group ID).
• RdKafka\TopicConf: Used to configure topic-specific settings (e.g., message timeout, offset commit behavior).
• RdKafka\Producer: The class used to send messages to Kafka topics.
• RdKafka\Consumer: The class used to consume messages from Kafka topics.
• RdKafka\KafkaConsumer: A higher-level consumer API (recommended for most use cases) that handles consumer groups and offset management automatically.
• RdKafka\Message: The object representing a consumed message, containing properties like payload, key, topic_name, offset, partition, and err.

Example of Kafka in PHP

Here are examples of a simple Kafka Producer and Consumer using the php-rdkafka extension.

Kafka Producer Example (PHP)

This script will send a message "Hello Kafka from PHP!" to a topic named my_topic.

<?php

// Ensure the rdkafka extension is loaded
if (!extension_loaded('rdkafka')) {
    echo "Error: The 'rdkafka' extension is not loaded. Please install and enable it.\n";
    exit(1);
}

// Configuration for the Kafka client
$conf = new RdKafka\Conf();
$conf->set('bootstrap.servers', 'localhost:9092'); // Replace with your Kafka broker(s)

// Optional: Set a statistics callback
$conf->setStatsCb(function ($kafka, $json, $json_len) {
    // echo "Kafka Stats: " . $json . "\n";
});

// Optional: Set a logger callback
$conf->setLogCb(function ($kafka, $level, $facility, $message) {
    // echo "Log: [$level] $facility: $message\n";
});

// Create a Kafka Producer instance
$producer = new RdKafka\Producer($conf);

// Create a topic handle for the 'my_topic' topic
$topic = $producer->newTopic('my_topic');

$messageKey = 'php_example_key';
$messagePayload = 'Hello Kafka from PHP! Timestamp: ' . date('Y-m-d H:i:s');
$partition = RD_KAFKA_PARTITION_UA; // Unassigned partition (Kafka will choose)

echo "Producing message to topic 'my_topic'...\n";

// Produce the message
// produce(partition, msgflags, payload, key)
$topic->produce($partition, 0, $messagePayload, $messageKey);

// It is critical to poll the producer to ensure events are sent.
// This loop flushes any outstanding messages or events.
$producer->poll(0);

$result = $producer->flush(10000); // Wait up to 10 seconds for messages to be sent

if (RD_KAFKA_RESP_ERR_NO_ERROR === $result) {
    echo "Message successfully sent:\n";
    echo "  Topic: my_topic\n";
    echo "  Key: " . $messageKey . "\n";
    echo "  Payload: " . $messagePayload . "\n";
} else {
    echo "Failed to send message: " . $result . "\n";
}

?>

This script will consume messages from the my_topic topic as part of a consumer group named my_php_consumer_group.

<?php

// Ensure the rdkafka extension is loaded
if (!extension_loaded('rdkafka')) {
    echo "Error: The 'rdkafka' extension is not loaded. Please install and enable it.\n";
    exit(1);
}

// Configuration for the Kafka client
$conf = new RdKafka\Conf();
$conf->set('bootstrap.servers', 'localhost:9092'); // Replace with your Kafka broker(s)
$conf->set('group.id', 'my_php_consumer_group'); // Consumer group ID
$conf->set('auto.offset.reset', 'earliest'); // Start consuming from the beginning if no offset is stored

// Set callbacks to log the partition assignments and revocations
$conf->setRebalanceCb(function (RdKafka\KafkaConsumer $kafka, $err, array $partitions = null) {
    switch ($err) {
        case RD_KAFKA_RESP_ERR__ASSIGN_PARTITIONS:
            echo "Assign partitions: " . json_encode($partitions) . "\n";
            $kafka->assign($partitions);
            break;
        case RD_KAFKA_RESP_ERR__REVOKE_PARTITIONS:
            echo "Revoke partitions: " . json_encode($partitions) . "\n";
            $kafka->assign(NULL); // Or an empty array []
            break;
        default:
            throw new \Exception($err);
    }
});

// Create a Kafka Consumer instance (high-level consumer API)
$consumer = new RdKafka\KafkaConsumer($conf);

// Subscribe to one or more topics
$topics = ['my_topic'];
$consumer->subscribe($topics);

echo "Waiting for messages on topic(s): " . implode(', ', $topics) . "...\n";
echo "Press Ctrl+C to exit.\n";

while (true) {
    $message = $consumer->consume(120 * 1000); // Timeout in milliseconds (120 seconds)
    switch ($message->err) {
        case RD_KAFKA_RESP_ERR_NO_ERROR:
            echo "Received message:\n";
            echo "  Topic: " . $message->topic_name . "\n";
            echo "  Partition: " . $message->partition . "\n";
            echo "  Offset: " . $message->offset . "\n";
            echo "  Key: " . $message->key . "\n";
            echo "  Payload: " . $message->payload . "\n\n";
            // Commit the offset of the consumed message (optional, but good practice for persistent consumers)
            $consumer->commit($message);
            break;
        case RD_KAFKA_RESP_ERR__PARTITION_EOF:
            // End of partition reached, consumer will wait for new messages
            echo "No more messages, waiting...\n";
            break;
        case RD_KAFKA_RESP_ERR__TIMED_OUT:
            echo "Timed out waiting for messages...\n";
            break;
        default:
            throw new \Exception($message->errstr(), $message->err);
            break;
    }
}

?>
