What “GPU Clustering” Really Means (And How to Code for It)

When building modern AI models or high-throughput media pipelines, you’ll quickly hear the phrase "GPU Cluster." But a true GPU cluster is much more than just a random collection of virtual machines with GPUs attached to them.

To make workload scaling work—whether for LLM pre-training or massive batch processing—four primary infrastructure pillars must align seamlessly:

1. Compute: High-end GPU SKUs (e.g., NVIDIA H100, H200, B200, or AMD MI300X) sized appropriately so single jobs can span multiple nodes simultaneously.
2. Interconnect: Ultra-fast, low-latency fabrics (such as InfiniBand, GPUDirect-RDMA, or AWS EFA) ensuring data synchronization operations like all-reduce do not bottleneck performance.
3. Storage: High-throughput parallel file systems (like Managed Lustre or AWS FSx for Lustre) feeding datasets to thousands of GPU cores without stalling execution pipelines.
4. Orchestration: Management engines like Slurm for batch/HPC workloads, or Kubernetes (GKE/AKS/EKS) for containerized environments.

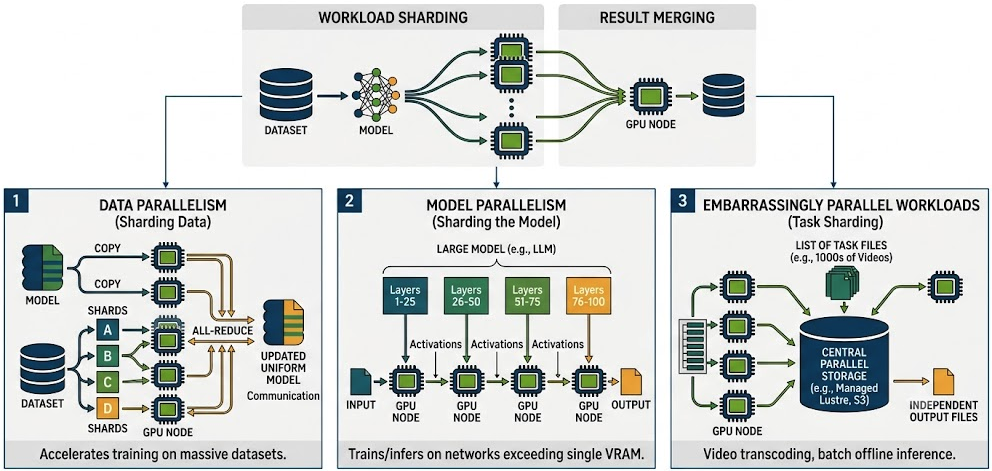

The Core Concept: Sharding and Merging

At its core, working with a GPU cluster follows a straightforward mental model: Sharding (dividing) the workload across multiple nodes/GPUs, executing the computations in parallel, and merging (synchronizing) the results.

Depending on your task, this sharding pattern takes one of three main forms:

1. Data Parallelism (Sharding Data)

• How it works: The model is replicated across every GPU, but the dataset (batch) is split into smaller chunks (shards) and distributed to each worker.
• How it merges: After each GPU completes its forward and backward passes, all GPUs exchange gradients using high-speed collective communication (All-Reduce) to update weights uniformly.
• Use case: Accelerating training speed when you have a massive dataset.

2. Model Parallelism (Sharding the Model)

• How it works: When a model (like an LLM with hundreds of billions of parameters) exceeds the VRAM limit of a single GPU, the model layers or tensor matrices are split across multiple GPUs.
• How it merges: GPUs pass intermediate activations step-by-step through the network layers during computation.
• Use case: Training or running inference on massive neural networks.

3. Embarrassingly Parallel Workloads (Task Sharding)

• How it works: Tasks are completely independent (e.g., video transcoding using FFmpeg fleets or batch offline inference). A list of thousands of independent files is sharded across worker nodes.
• How it merges: GPUs do not need inter-node communication. Each worker simply saves its output directly to central parallel storage (e.g., Managed Lustre or S3).

What Does This Look Like in Code?

Writing code for a GPU cluster differs significantly from single-GPU scripting. You have to account for distributed process groups, distributed data samplers, and parallel checkpointing.

Here is a simplified Python example using PyTorch Distributed Data Parallel (DDP):

import os
import torch
import torch.distributed as dist
from torch.nn.parallel import DistributedDataParallel as DDP
from torch.utils.data import DataLoader
from torch.utils.data.distributed import DistributedSampler

def init_cluster_env():
    # Read cluster environment variables (passed by Slurm or Kubernetes JobSet)
    dist.init_process_group(backend="nccl")
    local_rank = int(os.environ["LOCAL_RANK"])
    torch.cuda.set_device(local_rank)
    return local_rank

def train():
    local_rank = init_cluster_env()

    # 1. Load Model onto assigned GPU and wrap with DDP
    model = MyLargeModel().to(local_rank)
    model = DDP(model, device_ids=[local_rank])

    # 2. Shard dataset across all GPUs in the cluster using DistributedSampler
    # Reading directly from high-performance shared storage (e.g., /fsx or /lustre)
    dataset = MyDataset(data_path="/lustre/data/train_shard_*.bin")
    sampler = DistributedSampler(dataset)
    dataloader = DataLoader(dataset, batch_size=32, sampler=sampler)

    # 3. Training Loop
    optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)

    for epoch in range(10):
        sampler.set_epoch(epoch)
        for batch in dataloader:
            optimizer.zero_grad()
            outputs = model(batch.to(local_rank))
            loss = outputs.loss

            loss.backward()  # All-Reduce automatically triggers across GPUs via NCCL/InfiniBand
            optimizer.step()

if __name__ == "__main__":
    train()

How to Launch Jobs on a Cluster

Once your code is ready, you submit execution scripts to the orchestrator rather than running python train.py directly.

Slurm Job Script (sbatch)

#!/bin/bash
#SBATCH --job-name=cluster-training
#SBATCH --nodes=4                   # Request 4 nodes
#SBATCH --gpus-per-node=8           # Request 8 GPUs per node (32 total GPUs)
#SBATCH --output=/lustre/logs/%j.out

# Run training across all nodes using torchrun
srun torchrun \
    --nnodes=4 \
    --nproc_per_node=8 \
    --rdzv_id=$SLURM_JOB_ID \
    --rdzv_backend=c10d \
    --rdzv_endpoint=$MASTER_ADDR:$MASTER_PORT \
    train.py

Summary

Scaling compute with a GPU cluster isn't just about throwing more GPUs at a problem. It’s about structuring your architecture so that Compute, Interconnect, Storage, and Orchestration work together seamlessly. On the coding side, understanding how to shard data/models and synchronize results efficiently is the key to unlocking true cluster scalability.
