Mastering Audio Sync: Keyframes, GOP, FFmpeg, and HLS Explained

Video key frames (I-frames) are complete, independently encoded images that serve as crucial random access points, anchoring a Group of Pictures (GOP) which includes dependent P and B frames that build upon them for compression. Proper management of these I-frames and GOPs is paramount for maintaining audio-video synchronization, as decoding must always begin at an I-frame; starting elsewhere causes visual artifacts and sync loss due to decoding dependencies, while infrequent I-frames (long GOPs) introduce seeking delays that disrupt continuous audio. FFmpeg provides robust controls like -g for GOP size, -keyint_min, -force_key_frames for precise keyframe placement, and -sc_threshold 0 for strict adherence, all vital for ensuring stream compatibility and precise seeking. This meticulous configuration is especially critical for HTTP Live Streaming (HLS), where every video segment must begin with an I-frame to enable seamless adaptive bitrate switching, efficient seeking, and robust playback, thus directly preventing common audio sync issues by ensuring that video decoding can always start precisely when needed.

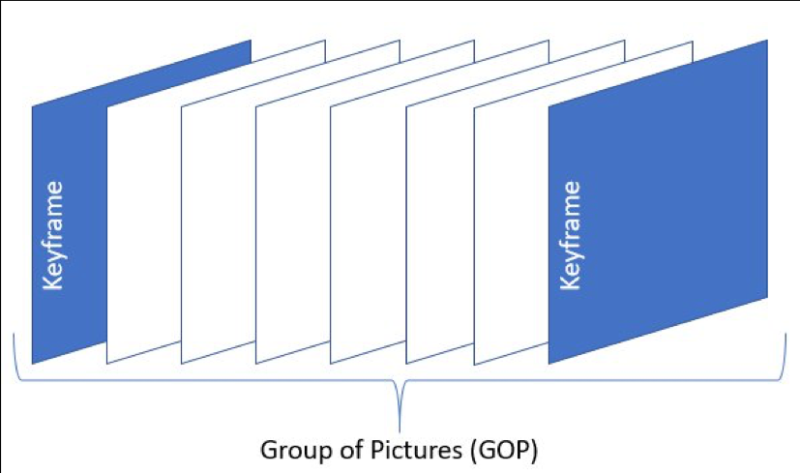

GOP (Group of Pictures)

A Group of Pictures (GOP) is a sequence of video frames used in video compression standards like MPEG, H.264, and H.265. It's a fundamental concept for optimizing compression by exploiting temporal redundancies between successive frames.

• Structure: A GOP typically starts with an I-frame (key frame) and ends just before the next I-frame. Its structure can be represented by N (the distance between two I-frames, also known as GOP size) and M (the distance between I/P frames and the next P-frame, or the number of B-frames between two reference frames + 1). For example, a GOP of IBBPBBP...I with N=12 and M=3 means an I-frame every 12 frames, and 2 B-frames between each I/P-frame and the next P-frame.
• Components:
  • I-frame (Intra-coded frame / Key Frame): Encoded independently without reference to any other frames. They are full pictures and serve as random access points in the video stream.
  • P-frame (Predicted frame): Encoded by referencing previous I-frames or P-frames. They store only the changes (motion vectors and residual data) from their reference frame, leading to higher compression than I-frames.
  • B-frame (Bi-directionally predicted frame): Encoded by referencing both previous and future I-frames or P-frames. They provide the highest compression ratios but require more complex decoding as they depend on frames that appear later in the display order.

Video Key Frames (I-frames)

A video key frame, specifically an I-frame (Intra-coded frame), is a complete image that is compressed independently without reference to any other video frames. It contains all the necessary visual information for that specific moment in time.

• Random Access Points: I-frames are crucial because they serve as random access points within a video stream. A video decoder can begin playback only from an I-frame. When a user seeks to a specific time in a video, the player searches for the nearest I-frame preceding or at that timestamp and starts decoding from there.
• Error Recovery: If a portion of the video stream is corrupted or lost during transmission, decoding can resume from the next available I-frame, minimizing the visual impact of the error and preventing continuous distortion.
• Stream Synchronization: Key frames are vital for synchronizing video with audio, especially during operations like seeking, fast forward/rewind, or switching between different video streams/qualities. They provide a reliable "anchor" point for the video timeline.

Relationship with Audio Sync

The proper management of video key frames and GOPs is paramount for maintaining audio-video synchronization, particularly when interacting with the video stream (seeking, starting playback, or handling network interruptions).

• Decoding Dependencies: Unlike I-frames, P-frames and B-frames do not contain a complete picture; they rely on preceding (and for B-frames, succeeding) I-frames or P-frames for their full reconstruction. If a decoder starts playback in the middle of a GOP (i.e., not on an I-frame), it cannot correctly reconstruct the P and B frames that follow until it encounters the next I-frame. This leads to visual artifacts, frozen frames, or a black screen.
• Seek Accuracy and Delay: When a user seeks to a new position, the player must locate the closest I-frame before or at the target time. If I-frames are infrequent (long GOPs), the player might have to decode a significant number of P and B frames from that distant I-frame to reach the desired display point. This decoding delay can cause the video to lag behind the audio, resulting in an audio sync issue. Short GOPs (frequent I-frames) allow for more precise and faster seeking.
• Segmented Streaming (e.g., HLS): In segmented streaming, each video segment must begin with an I-frame. This ensures that a player can download and immediately decode any segment, crucial for seamless adaptive bitrate (ABR) switching and quick segment navigation. If segments do not start with I-frames, switching can cause playback interruptions, glitches, or a temporary loss of A/V sync until a decodable I-frame is found.
• Audio's Continuous Nature: Audio is typically a continuous stream of samples. Video, however, is a series of discrete frames. To maintain sync, the correct video frame must be presented precisely when its corresponding audio chunk is played. Delays in video decoding due to missing I-frames or incorrect GOP starts directly disrupt this crucial timing, making the audio appear out of sync.

How to set it up with ffmpeg

ffmpeg offers robust controls for managing GOP structure and key frame insertion, essential for stream compatibility, seeking precision, and maintaining audio/video synchronization.

• Setting GOP Size (Keyframe Interval):
  • The -g option defines the maximum distance between two key frames. A smaller value means more frequent key frames, improving seekability but potentially increasing file size slightly due to less inter-frame compression.
  • Example: For a 30fps video, -g 60 means a key frame every 2 seconds.

ffmpeg -i input.mp4 -c:v libx264 -g 60 -c:a aac output.mp4

• Setting Minimum Keyframe Interval:
  • The -keyint_min option specifies the minimum distance between key frames. This is often used with -g to prevent encoders from inserting key frames too frequently, even if scene changes occur rapidly, ensuring a more consistent GOP structure.
  • Example:

ffmpeg -i input.mp4 -c:v libx264 -g 60 -keyint_min 30 -c:a aac output.mp4

• Forcing Key Frames at Specific Intervals/Times:
  • The -force_key_frames option allows explicit insertion of key frames at precise time intervals or specific timestamps. This is particularly useful for segmented streaming formats like HLS, where each segment must begin with a key frame.
  • Force every X seconds:

ffmpeg -i input.mp4 -c:v libx264 -force_key_frames "expr:gte(t,n_forced*2)" -c:a aac output.mp4

This inserts a key frame every 2 seconds. n_forced is an internal counter that increments with each forced key frame.

• Force at specific timestamps (comma-separated):

ffmpeg -i input.mp4 -c:v libx264 -force_key_frames "00:00:00.000,00:00:10.000,00:00:20.000" -c:a aac output.mp4

• Disabling Scene Change Detection:
  • Many encoders automatically insert key frames when a significant scene change is detected to improve visual quality. For strict GOP alignment (essential for HLS), you might want to disable this feature using -sc_threshold 0 with libx264/libx265. This forces the encoder to adhere strictly to the -g and -force_key_frames settings.
  • Example:

ffmpeg -i input.mp4 -c:v libx264 -g 60 -keyint_min 60 -sc_threshold 0 -c:a aac output.mp4

What about HLS?

HTTP Live Streaming (HLS) critically depends on carefully managed GOPs and key frames for its core functionality and a smooth user experience.

• Segment Alignment:
  • HLS breaks video into short, typically fixed-duration segments (e.g., 2-10 seconds long).
  • *Each HLS video segment must start with a key frame (I-frame). This is non-negotiable for robust HLS implementations. It ensures that a player can download any segment from the playlist and immediately begin decoding and playing it without needing any preceding segments.
  • This alignment is also crucial for Adaptive Bitrate (ABR) streaming*. When a player switches between different bitrate renditions (e.g., due to changing network conditions), it can seamlessly switch to the corresponding segment of the new bitrate stream, as long as both segments start with an I-frame at the same temporal point. Without this, switches can lead to visual glitches, decoding errors, or temporary audio-video desynchronization.
• Seamless Seeking and Navigation:
  • Because every segment starts with an I-frame, HLS players can perform efficient seeking. To seek to a specific time, the player simply identifies the HLS segment covering that time, downloads it, and starts playback from its beginning.
  • This also facilitates features like fast forward and rewind, allowing players to jump through segments without complex decoding operations.
• ffmpeg and HLS Segmentation:
  • When using ffmpeg to create HLS streams, you combine the key frame control options with HLS-specific parameters.
  • The -hls_time option sets the duration of each HLS segment. It's imperative that your key frame interval (set by -g or -force_key_frames) matches this hls_time to ensure perfect segment-to-keyframe alignment.
  • Example ffmpeg command for HLS (VOD):

ffmpeg -i input.mp4 \
        -c:v libx264 -preset veryfast -g 60 -keyint_min 60 -sc_threshold 0 \
        -force_key_frames "expr:gte(t,n_forced*2)" \
        -c:a aac -b:a 128k \
        -f hls \
        -hls_time 2 \
        -hls_playlist_type vod \
        -hls_segment_filename "segment%03d.ts" \
        output.m3u8

In this example:

• -g 60 and -keyint_min 60 set a GOP size of 2 seconds (assuming 30fps).
• -sc_threshold 0 disables scene change detection to force strict GOP adherence, which is vital for HLS.
• -force_key_frames "expr:gte(t,n_forced*2)" explicitly forces a key frame every 2 seconds, directly matching the -hls_time 2 segment duration.
• The output will be .ts video segments and an .m3u8 playlist manifest.

By meticulously configuring GOP size and key frame placement, especially when targeting segmented streaming formats like HLS, you can significantly enhance the stream's robustness, seeking accuracy, and overall playback quality, effectively preventing common audio sync issues that arise from improper video decoding starts.

Standard MP4 Transcoding (A/V Drift Prevention)

This method represents a standard approach for converting video files into MP4 format, primarily focusing on maintaining audio-video synchronization over time. It achieves this by enforcing a tight coupling of audio and video timelines.

ffmpeg -y -i input.mp4 \
    -c:v libx264 -pix_fmt yuv420p \
    -vsync cfr \
    -c:a aac -b:a 128k -ar 48000 -ac 2 \
    -af "aresample=async=1:async=1:min_hard_comp=0.1:first_pts=0" \
    -movflags +faststart \
    output.mp4

Command Breakdown

• -y: Overwrite output files without asking.
• -i input.mp4: Specifies the input video file.
• -c:v libx264: Sets the video encoder to H.264 (libx264). This is a widely compatible and efficient codec.
• -pix_fmt yuv420p: Defines the pixel format as YUV 4:2:0 planar. This is a common and highly compatible format for H.264 video, ensuring broad playback support.
• -vsync cfr: Constant Frame Rate (CFR). This crucial option forces the video stream to maintain a constant frame rate, which is then used as the master clock to synchronize the audio stream. This helps prevent audio/video desynchronization by aligning video frames precisely with the audio timeline.
• -c:a aac: Sets the audio encoder to AAC (Advanced Audio Coding). This is a standard and efficient audio codec for MP4.
• -b:a 128k: Sets the audio bitrate to 128 kilobits per second, a common setting for good quality stereo audio.
• -ar 48000: Sets the audio sample rate to 48 kHz, a standard for video content.
• -ac 2: Configures the audio output to 2 channels (stereo).
• -af "aresample=async=1:min_hard_comp=0.1:first_pts=0": Audio Resampling Filter for Synchronization.
  • aresample: The audio resampling filter.
  • async=1: Enables asynchronous audio resampling, allowing the audio samples to be adjusted (stretched or squeezed) to match the video's presentation timestamp (PTS).
  • min_hard_comp=0.1: Specifies the minimum hard compensation factor. When the A/V difference is too large to be compensated by simple resampling, this sets the minimum factor for hard cuts or insertions to keep sync. A lower value means it's less aggressive in hard compensation.
  • first_pts=0: Ensures the audio stream starts precisely at PTS 0, aligning it with the video's start.
• -movflags +faststart: Optimizes the MP4 file for web streaming. This moves the MOOV atom (metadata, index) from the end of the file to the beginning, allowing playback to start almost immediately as soon as the file header is downloaded.
• output.mp4: The name of the output MP4 file.

HLS Packaging (Considering Discontinuity)

This configuration is specifically optimized for HLS (HTTP Live Streaming) environments where frequent discontinuities, such as those caused by ad insertions (EXT-X-DISCONTINUITY tags), are expected. The settings aim to ensure robust synchronization and seamless playback across segment boundaries.

ffmpeg -y -ss 90 -i input.mp4 \
    -c:v libx264 -b:v 2500k -maxrate 2500k -bufsize 5000k \
    -x264-params "nal-hrd=cbr" -g 60 -keyint_min 60 \
    -c:a aac -b:a 128k -ar 48000 \
    -af "aresample=async=1:min_hard_comp=0.1:first_pts=0" \
    -vsync cfr -max_interleave_delta 0 -muxdelay 0 \
    -fflags +genpts
    -f hls \
    -hls_time 2 \
    -hls_list_size 0 \
    -hls_flags +discont_start+independent_segments \
    -hls_segment_filename "segment_%04d.ts" \
    playlist.m3u8

Command Breakdown

• -y: Overwrite output files without asking.
• -ss 90: Seeks to the 90-second mark in the input file before processing. Useful for starting encoding from a specific point.
• -i input.mp4: Specifies the input video file.
• -c:v libx264: Sets the video encoder to H.264 (libx264).
• -b:v 2500k: Sets the target video bitrate to 2500 kilobits per second.
• -maxrate 2500k: Sets the maximum video bitrate, crucial for enforcing Constant Bit Rate (CBR) or constrained variable bitrate.
• -bufsize 5000k: Sets the size of the video buffer. When combined with -maxrate, this helps control the video's peak bitrate and ensures smooth streaming by allowing the player to pre-buffer sufficient data.
• -x264-params "nal-hrd=cbr": Specifies H.264 encoder parameters.
  • nal-hrd=cbr: Enforces a Network Abstraction Layer (NAL) Human Readable Descriptor (HRD) mode to Constant Bit Rate. This is vital for HLS, especially when dealing with discontinuities, as it ensures a predictable bitrate for each segment, simplifying bandwidth estimation and playback.
• -g 60: Sets the Group of Pictures (GOP) size to 60 frames.
• -keyint_min 60: Sets the minimum interval between keyframes to 60 frames.
  • For a 30fps source and 2-second segments (-hls_time 2), a GOP size of 60 frames ensures that each segment starts with a keyframe (2 \text{ seconds} \times 30 \text{ fps} = 60 \text{ frames}). This is fundamental for HLS, allowing players to start playback from any segment without needing previous frames for decoding. It also makes segment transitions smoother, particularly after discontinuities.
• -c:a aac -b:a 128k -ar 48000: Sets the audio encoder to AAC, with a bitrate of 128 kbps and a sample rate of 48 kHz.
• -af "aresample=async=1:min_hard_comp=0.1:first_pts=0": Audio resampling filter for synchronization, identical to the MP4 transcoding, ensuring audio aligns with video PTS.
• -vsync cfr: Enforces a Constant Frame Rate for video synchronization.
• -muxdelay 0: Minimizes the maximum difference in presentation time between audio and video packets in the output stream, reducing potential latency and improving A/V sync.
• -f hls: Specifies the output format as HLS.
• -hls_time 2: Sets the duration of each HLS segment to 2 seconds. Shorter segments can improve seeking precision and adaptability to network changes but increase overhead.
• -hls_list_size 0: Keeps all segments in the playlist. A value of 0 means the playlist will not automatically remove older segments, effectively creating a VOD (Video on Demand) playlist rather than a live sliding window.
• -hls_flags +discont_start+independent_segments: HLS specific flags for robustness:
  • discont_start: Instructs FFmpeg to add an EXT-X-DISCONTINUITY tag at the beginning of the HLS playlist, useful when the stream starts with a discontinuity (e.g., ad break).
  • independent_segments: Ensures that each segment can be decoded and played back independently, without requiring information from preceding segments. This is crucial for seamless transitions during ad insertions, seeking, and general player robustness, as it reduces the player's burden for sync calculation.
• -hls_segment_filename "segment_%04d.ts": Defines the naming pattern for the individual HLS segment files (e.g., segment_0000.ts, segment_0001.ts).
• playlist.m3u8: The name of the HLS master playlist file, which references all the individual segment files.

Additional HLS Sync Option (if needed)

• -max_interleave_delta 0: (Optional) This parameter can be added to the FFmpeg command before -f hls. It sets the maximum interleave delta between audio and video packets to 0. This means FFmpeg will try to keep audio and video packets as close together as possible in the output stream, minimizing any inherent delay or buffering that might occur during muxing. This can further tighten A/V synchronization, especially in complex HLS setups with frequent segment changes.
