Smooth switching with EXT-X-DISCONTINUITY in HLS

EXT-X-DISCONTINUITY in HLS

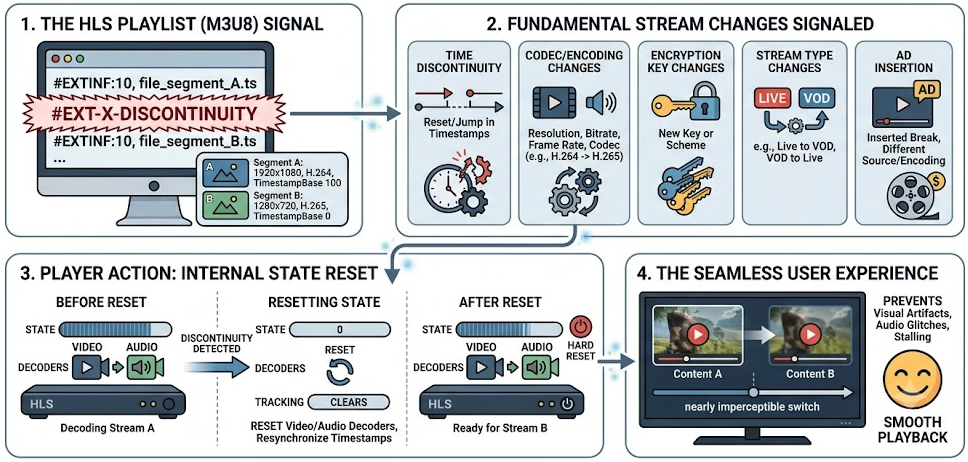

EXT-X-DISCONTINUITY is a tag in an HLS (HTTP Live Streaming) playlist (M3U8 manifest) that signals a discontinuity between the media segment immediately preceding it and the media segment immediately following it. This tag indicates that the two segments are not contiguous in time or stream properties, and the player should not assume a continuous playback experience between them.

Its primary purpose is to inform the player that a fundamental change has occurred in the stream. This change could be:

• Time Discontinuity: The playback timeline resets or jumps, meaning the timestamps of the subsequent segments are not directly relative to the preceding ones.
• Codec or Encoding Changes: The video or audio codec, resolution, bitrate, frame rate, or other encoding parameters have changed.
• Encryption Key Changes: A new encryption key is used, or the encryption scheme itself has changed.
• Stream Type Changes: A live stream might switch to a VOD segment, or vice-versa.
• Ad Insertion: A common use case where an ad break is inserted, often with different encoding or source.

When a player encounters EXT-X-DISCONTINUITY, it understands that it needs to reset its internal state, including video decoders, audio decoders, and timestamp tracking, before playing the subsequent segments. This prevents decoding errors, timestamp mismatches, and glitches that would occur if the player tried to seamlessly transition between fundamentally different streams.

Why EXT-X-DISCONTINUITY is helpful for smooth stitching?

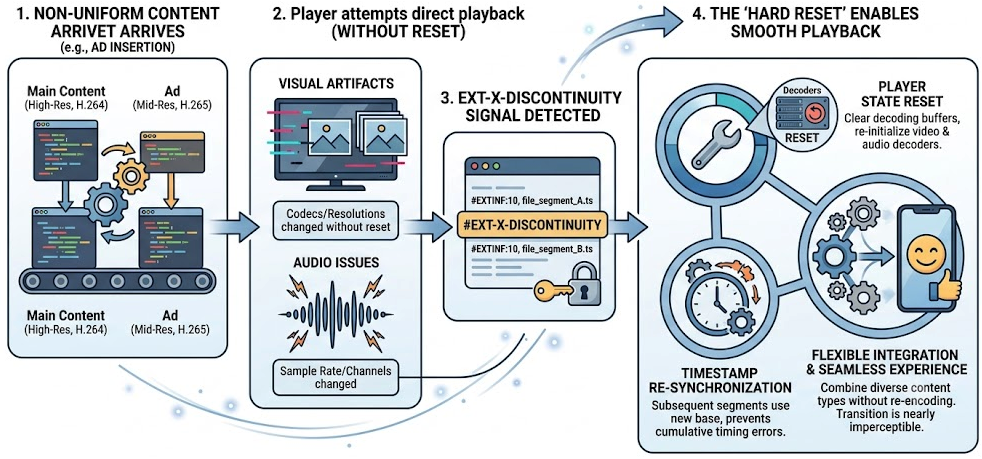

EXT-X-DISCONTINUITY is crucial for smooth stitching of different video segments in HLS because it provides a mechanism for players to gracefully handle non-uniform content. When stitching together multiple video sources (e.g., pre-roll ads, main content, mid-roll ads, outro), it's highly probable that these segments originate from different encoders, have varying resolutions, bitrates, codecs, keyframe intervals, or even entirely different timebases.

Without EXT-X-DISCONTINUITY, a player would attempt to decode and play consecutive segments as if they were part of a single, continuous stream. This would lead to:

• Visual Artifacts: Glitches, freezes, or corrupted frames if codecs or resolutions change without a proper reset.
• Audio Issues: Crackling, pops, or silence if audio parameters like sample rate or channels change.
• Playback Stalling: The player might fail to decode the new segment and stall playback.
• Timestamp Errors: Incorrect seeking or timeline representation if timestamps are not reset.

By inserting EXT-X-DISCONTINUITY at the points where segments are stitched:
1. Player State Reset: The player is explicitly instructed to clear its decoding buffers, reset its video and audio decoders, and re-initialize its parsing of the stream.
2. Timestamp Re-synchronization: The player understands that the timestamps of the subsequent segments start from a new base, preventing cumulative timing errors.
3. Flexible Content Integration: It allows content providers to combine segments encoded with different parameters or from different sources without needing to re-encode everything to a single, consistent format. This saves time and computational resources.
4. Seamless User Experience: While technically there's a discontinuity, the player's intelligent handling often results in a nearly imperceptible transition for the end-user, appearing as a smooth continuation of playback. For instance, an ad might play with different encoding, but the switch back to the main content happens without a visible glitch.

In essence, EXT-X-DISCONTINUITY acts as a "hard reset" button for the player, ensuring that it is always prepared to correctly interpret and render the incoming media stream, regardless of how drastically it may have changed from the previous segment.

Best encoding method to avoid compatibility issues when stitching video in FFmpeg

When stitching video in FFmpeg, the "best" encoding method to avoid compatibility issues largely depends on whether you intend to re-encode the video or simply concatenate streams without re-encoding.

1. For Concatenation Without Re-encoding (FFmpeg Concat Demuxer)

This is the most efficient method, as it avoids quality loss and saves processing time. However, it requires strict adherence to source file consistency:

• Identical Properties: The absolute best way to avoid compatibility issues is to ensure all input video and audio files have identical properties. This means:
  • Codec: Same video codec (e.g., H.264) and same audio codec (e.g., AAC).
  • Codec Profile/Level: Ideally, the same profile and level within the codec.
  • Resolution: Identical width and height.
  • Frame Rate: Identical frames per second (e.g., 25fps, 30fps).
  • Pixel Format: Identical pixel format (e.g., yuv420p).
  • Bitrate: While not strictly mandatory, consistent bitrates can lead to smoother playback.
  • Keyframe Interval (GOP size): Consistent keyframe intervals are crucial for seamless transitions and efficient seeking. It's often recommended that each segment begins with a keyframe.
  • Audio Sample Rate, Channels, Bitrate: Identical for audio streams.
• Recommended Codecs:
  • Video: H.264 (libx264) is widely supported, efficient, and offers excellent quality. It's almost universally compatible.
  • Audio: AAC (libfdk_aac or aac) is the most common and compatible audio codec for video containers.
• FFmpeg Command Example (for identical files):

ffmpeg -f concat -safe 0 -i input.txt -c copy output.mp4

Where input.txt lists your files:

file 'input1.mp4'
file 'input2.mp4'
file 'input3.mp4'

The -c copy option tells FFmpeg to copy the streams directly without re-encoding, which is why identical properties are paramount.

2. When Re-encoding is Necessary (FFmpeg Concat Filter)

If your input files have different properties, direct concatenation will fail or produce corrupted output. In such cases, you must re-encode the segments to a uniform format. This is less efficient and introduces generational quality loss but guarantees compatibility.

• Standardize to a Common Format: Choose a robust and widely supported target format:
  • Video Codec: H.264 (libx264) is again the gold standard. Use a consistent profile (e.g., high) and level.
  • Audio Codec: AAC (libfdk_aac or aac).
  • Resolution: Decide on a target resolution (e.g., 1920x1080) and scale all inputs to it.
  • Frame Rate: Choose a consistent frame rate (e.g., 30fps) and convert all inputs.
  • Pixel Format: yuv420p is universally compatible.
• FFmpeg Command Example (with re-encoding using concat filter):

    ffmpeg -i input1.mp4 -i input2.mp4 -i input3.mp4 \
      -filter_complex "[0:v]setsar=1,scale=1920:1080,fps=30,format=yuv420p[v0]; \
                       [0:a]aresample=48000[a0]; \
                       [1:v]setsar=1,scale=1920:1080,fps=30,format=yuv420p[v1]; \
                       [1:a]aresample=48000[a1]; \
                       [2:v]setsar=1,scale=1920:1080,fps=30,format=yuv420p[v2]; \
                       [2:a]aresample=48000[a2]; \
                       [v0][a0][v1][a1][v2][a2]concat=n=3:v=1:a=1[outv][outa]" \
      -map "[outv]" -map "[outa]" \
      -c:v libx264 -preset medium -crf 23 \
      -c:a aac -b:a 192k \
      output.mp4


This example scales, adjusts frame rate and pixel format for video, resamples audio, and then concatenates.

In summary:

The *absolute best method to avoid compatibility issues when stitching video in FFmpeg is to ensure all input files are encoded with identical parameters using well-supported codecs like H.264 (libx264) for video and AAC for audio. If your input files don't meet this criterion, then re-encoding them all to a common, standardized format before or during* the concatenation process (using the concat filter) is the necessary approach, despite the added processing time and potential quality reduction.
